Product Introduction

• 1. High Control Precision

• It features high control precision, supports 4-axis pulse direction and EtherCAT bus control, integrates a height adjustment axis, and the height adjustment axis adopts analog full closed-loop control. It can also achieve the control of the entire machine's motion and height adjustment with one card, realizing precise and high-precision laser processing with a control cycle of 1ms. It has S-type acceleration and deceleration with filtering, speed preview, intelligent speed increase and decrease at inflection points, smooth corner processing, and small arc speed limit.

• 2. Fast Computing Speed

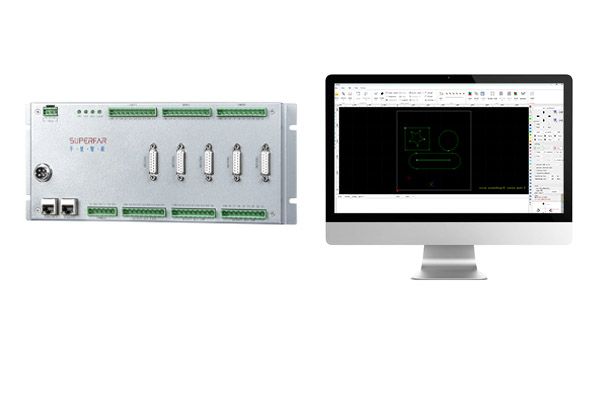

• The QLC-520cut control platform adopts a digital processing unit with super computing power and an extremely short servo cycle, which is suitable for high-speed and high-precision motion control.

• 3. Ethernet Port Communication

• It uses 100/1000M Ethernet for fast and stable communication without the need to install driver programs. The control system operates independently and is not affected by industrial computer failures, making the operation of machine tool equipment systems more stable.

• 4. Large Data Storage Capacity

• The QLC-520cut is equipped with relatively large memory and can process large amounts of data at one time, making it very suitable for high-speed and high-precision motion control with large data throughput. It supports four-channel encoder input, 4-axis pulse direction output, two-channel ±10vDAC analog output, supports 24-channel IO output, 27-channel IO input, and supports user customization.

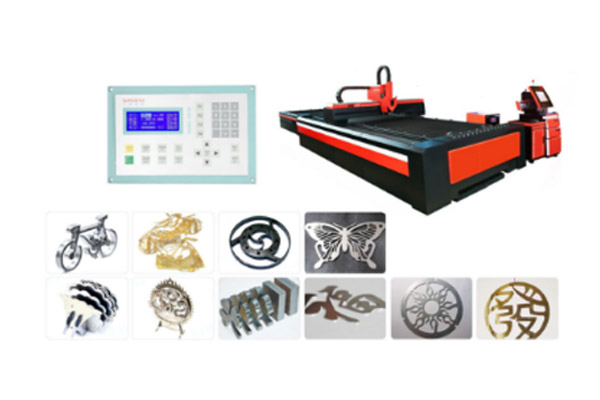

Typical Application Fields of the Product

Main Applications:
High, medium and low power sheet metal cutting, aluminum substrate cutting, etc.
